PVC Pipe Making Machine
PVC pipe making machine /PVC pipe extrusion production line/ is mainly used in the manufacture of the UPVC and PVC pipes with various pipe diameter and wall thickness, such as the agricultural and constructional plumbing, water supply and water drainage, electric conduit pipe etc.
This line is composed of conical twin-screw extruder, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder is equipped with Siemens beide brand motor and ABB brand inverter, The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models for different diameter pipes, such as two-claw, three-claw, four-claw, six-claw etc. For the cutter, you can choose lift cutting blade type and no-dust cutting type.Our PVC pipe extrusion production line is of reliable performance and high production efficiency.
Our extrusion line can produce the PVC pipe with diameter from 16mm to 630mm
Process flow:
PVC powder + additive → mixing
Spring feeder → twin screw extruder → mould → vacuum calibration machine → haul off machine → cutting machine → stacker

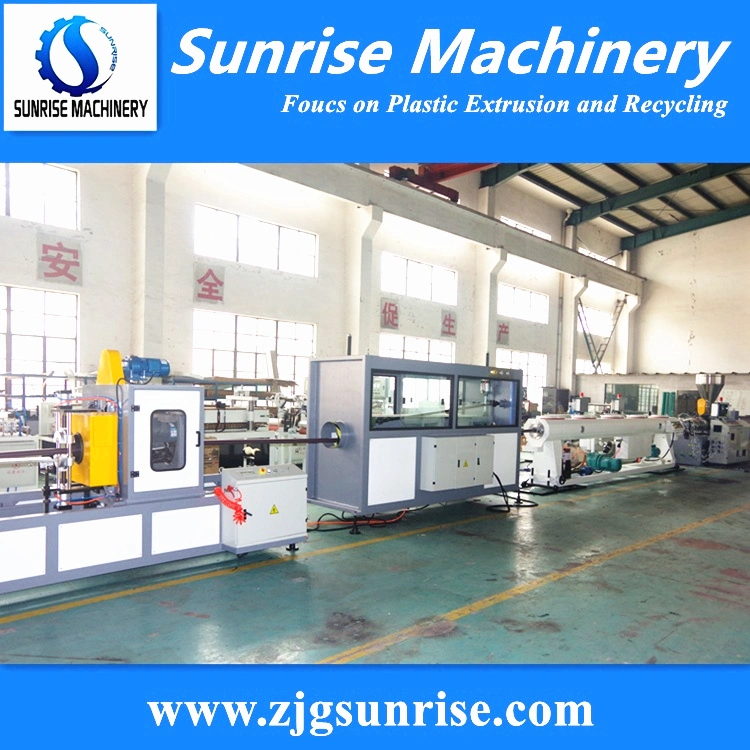

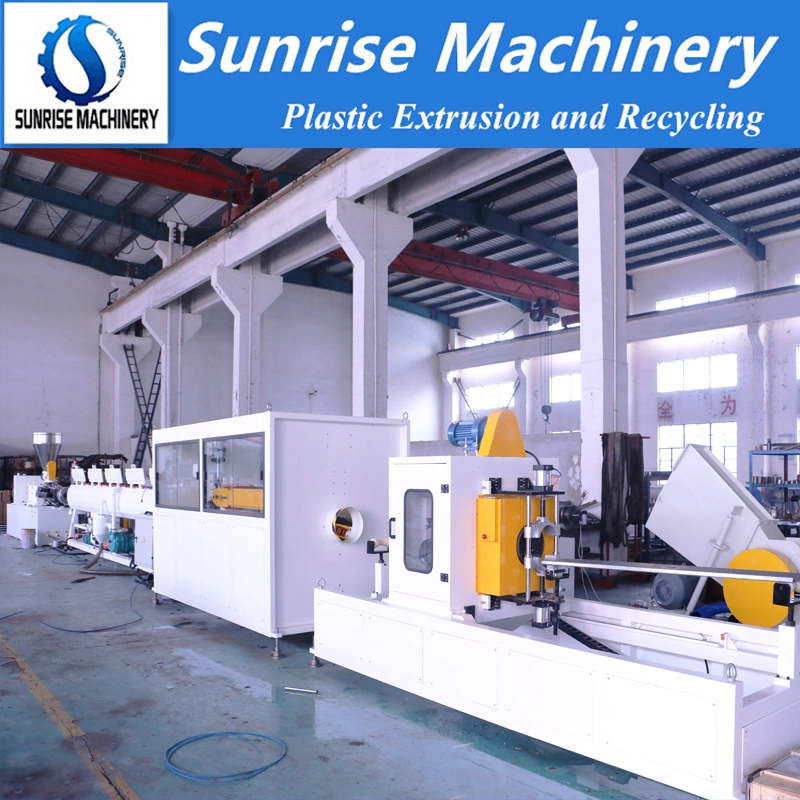

After mixing raw material with other additives, the mixed powder will be fed into the extruder by spring feeder or vacuum feeder, after extrusion, the soft hot pipes will be produced by mould, then it goes into the vacuum calibration tank as below pictures:
The vacuum calibration tank's function to keep the pipe's shape and cool it, the vacuum calibration tank is mainly imposed of one or several water pump, one or several vacuum pump, and several rows of spraying nozzle. after cooling and forming shape, the pipes will be pulled to next machine--haul off machine, haul off machine's mainly function is to keep the pipes forward, there are two caterpillars, three caterpillars, even to eight caterpillars for different diameter pipes. below piture one is three caterpillar haul off machine, it is suitable for pipes' diameter not more than 250mm.
After haul off machine, the next machine is cutter, its function is to cut the pipes based on required length. there are also several type of cutting way, one is cutter type, another is planetary type cutter, and we also have no-dust type cutter, they are used for different type of pipes. below is planetary type cutter:
At last, you can get good quality PVC pipes by our extrusion line. all our machines will be tested before delivering to you, if there is problem, we can make sure it can be solved at our factory. with more than 11 years' manufacturing experience, we hope that we could have chance to cooperate with customers all over the world.
Our Service:
1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
2. Our machine has 12 month guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.
3. If the buyer have any problem during the operation, we will offer technical solutions.
