20 m cable 7\" LCD pipe inspection system with 23 mm drain endoscope camera

20m Cable 7inch LCD Pipeline Inspection System With 23mm Drain Pipe Endoscope Video Camera    This  pipe inspection camera system is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants.

Featured Products

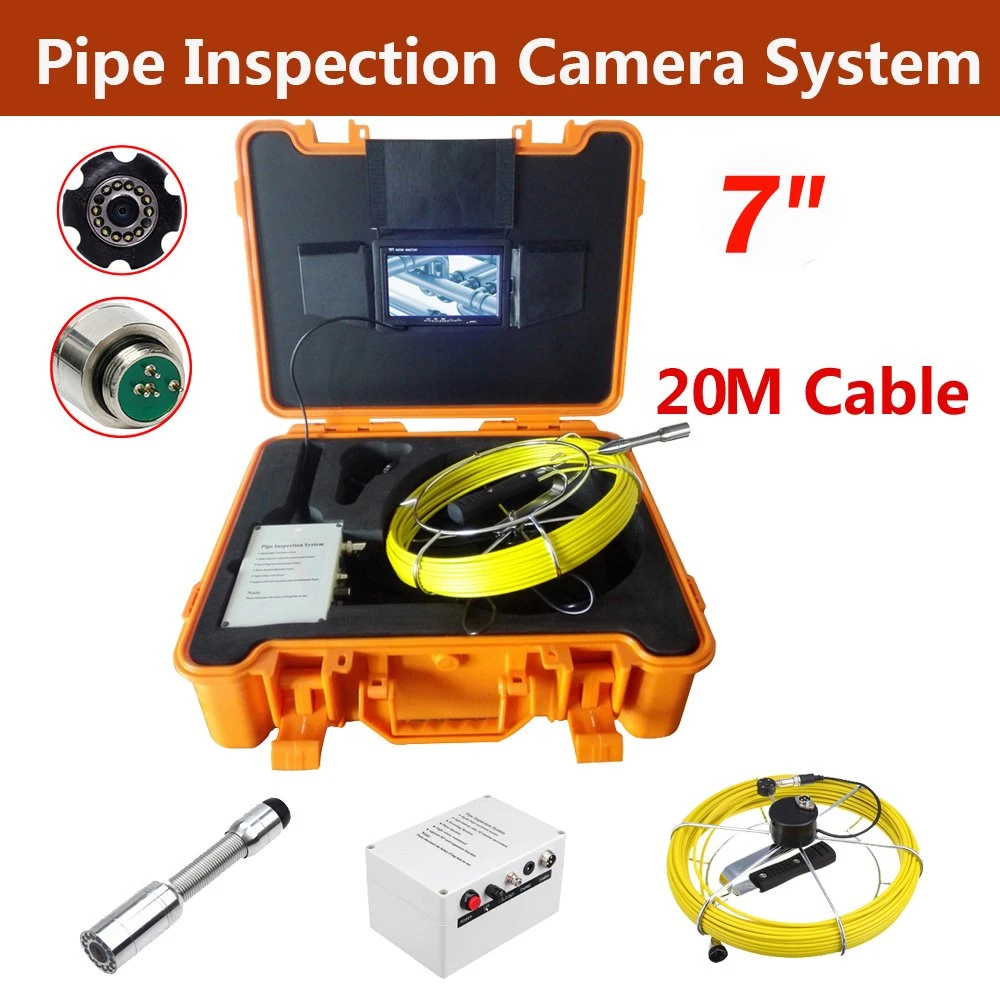

20m Cable 7inch LCD Pipeline Inspection System With 23mm Drain Pipe Endoscope Video Camera



20m Cable 7inch LCD Pipeline Inspection System with 23mm Drain Pipe Endoscope Video Camera



This  pipe inspection camera system is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants. The camera head itself contains 12 adjustable white LED lights to illuminate the inspection area with a flexible spring-coiled joint to easily navigate corners.


This product is suitable to inspect the pipeline, sewer, air duct, tank, underwater and others dark environment, check the internal cracks, corrosion, weld, plugs and other unusual circumstance



Product Description





Feature20 Meter Cable
12Pcs LED Camera
120°Camera viewing angle
7" TFT Monitor
ABS case for easy transportation
20M Fiberglass Cable & Stainless Steel Reel
Color Stainless Steel Camera with 12Pcs LED Lights





Product Parameters



MondelTP9300
20m 7 Inch 23mm Len Pipeline/Drain Inspection Camera with 12PCS LED Lights (TP9000)Monitor

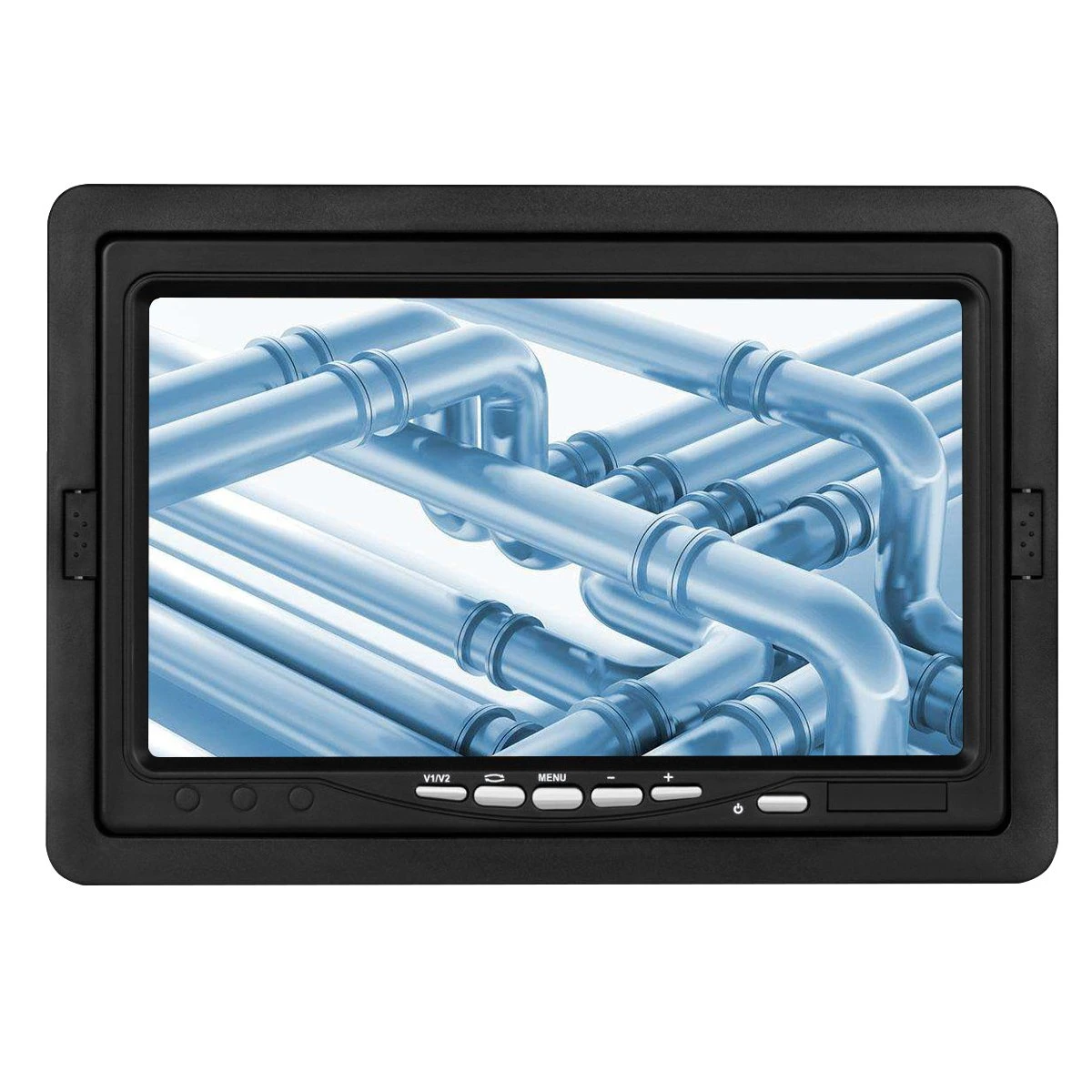

1. Monitor size: 7inch TFT color monitor
2. Monitor Total Pixels:1440X234
3. Monitor power supply:DC 12V
4. Osd language: English
5. Up,down left,right adjustable.
6. 16:9 4:3 model
7. Sunshade include
8. Waterproof connector
20m 7 Inch 23mm Len Pipeline/Drain Inspection Camera with 12PCS LED Lights (TP9000)Camera
1. Camera size:23mmx120mm front size:45mm
2.Camera case material:stainless steel house stainless steel 304
3.Sensor size:1/4 inch
4. View angle:120
5. Camera light:12PCS white LEDS.
6. Waterproof:IP68
7. LEDS Adjustable
8.Work temperature:-10°C-50°C
20m 7 Inch 23mm Len Pipeline/Drain Inspection Camera with 12PCS LED Lights (TP9000)Cable wheel
1.Cable size:320MM(diameter)X110(h)
2.Wire material: fiberglass rod
3.Fiberglass length:20M
4.Fiberglass diameter:4.8MM
5.Fiberglass color:yellow
20m 7 Inch 23mm Len Pipeline/Drain Inspection Camera with 12PCS LED Lights (TP9000)Battery
1.Battey pype: 12V 4500MAH Lithium Battery
2.Continuous use time for banttery:approximate 8h











Detailed Photos


20m Cable 7inch LCD Pipeline Inspection System with 23mm Drain Pipe Endoscope Video Camera







Apply To

20m Cable 7inch LCD Pipeline Inspection System with 23mm Drain Pipe Endoscope Video Camera



20m Cable 7inch LCD Pipeline Inspection System with 23mm Drain Pipe Endoscope Video Camera
