In cement production, material transportation plays an important role in all sections of the plant from the quarry to the cement delivery station. There are several transportation methods for conveying materials from the quarry to the storage yard: 1. Rail vehicle transportation; 2. Aerial rope-way transportation; 3. Road transp

Featured Products

In cement production, material transportation plays an important role in all sections of the plant from the quarry to the cement delivery station. There are several transportation methods for conveying materials from the quarry to the storage yard: 1. Rail vehicle transportation; 2. Aerial rope-way transportation; 3. Road transportation by dump truck; 4. Transportation by belt conveyor.

The pipe belt conveyor is a kind of special belt conveyor developed on the basis of the trough belt conveyor. Its working principle is the same as that of the ordinary belt conveyor, which is driven by friction to move the conveyor belt and its materials. Most of the components can be used in common with the ordinary belt conveyor.

The pipe conveyors are widely used in cement plant, from the crushed rock yards to cement product line.

Ske Coal Mine Belt Conveyor, Pipe Belt Conveyor of Large Mining Machinery Equipment




Features

1. Closed conveying materials: no scattering, flying or leakage during the conveying process. Since the return branch conveyor belt is also a closed circular tube, there is no need to worry about the scattering of materials adhering to the conveyor belt. Meanwhile, the foreigned materials will not fix in. Therefore, the pollution-free transportation is realized, the environment is purified, the belt gallery or cover of ordinary belt conveyor is not nessesory, and it can reduce the cost of infrastructure construction.
2. The conveyor line can be arranged in a curved space: because on the conveyor line, the conveyor belt is in a circular pipe structure, so that the conveyor can realize turning in the vertical and horizontal plane, bypass various obstacles and facilities, cross roads, railways, rivers, etc., without intermediate transfer. Therefore, a very economic general layout scheme is designed to achieve spatial bending layout with a small radius of curvature, and 90 ° bending can be achieved.
3. It can improve the conveying angle: the material is wrapped in the conveyor belt to increase the friction between the material and the inner surface of the conveyor belt, so it can improve the inclination of the belt conveyor.
4. No deviation: due to its structural principle, the phenomenon of belt deviation will not occur, which can reduce the maintenance cost. However, it is allowed that the conveyor belt of the circular tube belt conveyor has certain torsion.
5. Bidirectional conveying materials: under special process requirements, the lower circular tube belt conveyor can convey materials.



Installation of the pipe conveying system
Ske Coal Mine Belt Conveyor, Pipe Belt Conveyor of Large Mining Machinery Equipment

Note:
Volume conveying capacity is shown in the table, which is calculated by horizontal transportation and cross-sectional area of 75%.

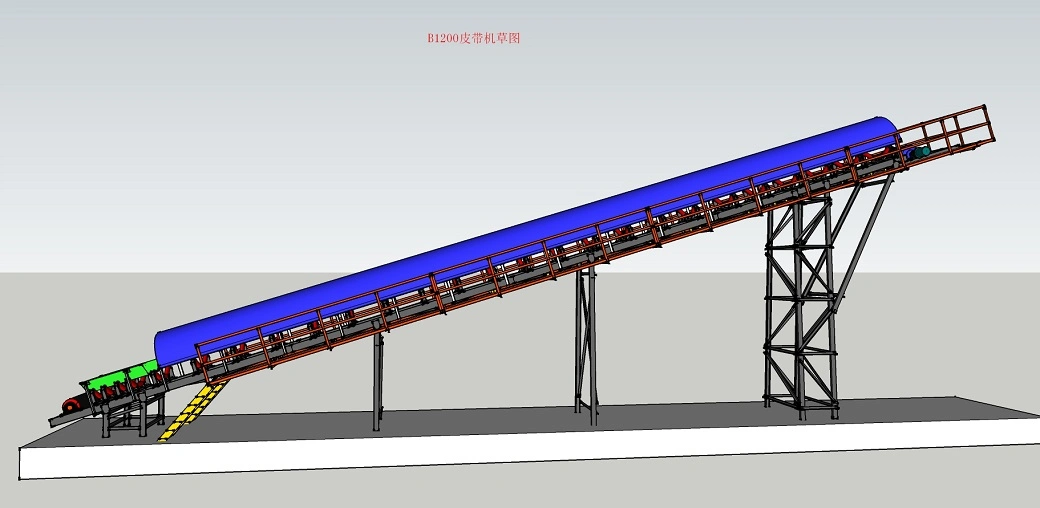

SKE design
SKE provides and recommends long distance belt conveyors according to customers' actual needs, and makes field visits and strategies to optimize solutions. In order to obtain the most accurate information and quotation, please inform us of your specific requirements. Contact number:
Ske Coal Mine Belt Conveyor, Pipe Belt Conveyor of Large Mining Machinery Equipment

SKE FACTORY
Ske Coal Mine Belt Conveyor, Pipe Belt Conveyor of Large Mining Machinery Equipment
Ske Coal Mine Belt Conveyor, Pipe Belt Conveyor of Large Mining Machinery Equipment


FAQs:

Q:  How long is the the gurantee period?
A:  It is One year warranty, but not including the wear-parts like rollers, idlers etc.

Q: How do you ship the product?
A: It is usually shipped by sea-feight, using containers;

Q: Can your company design the full conveyor system?
A: Yes, but we need detail of the project, as well as the topographic map;
