PE HDPE Pipe Extrusion Machine Production LineApplication:PE HDPE Pipe Extrusion Machine Production Line is mainly used in the production of agricultural  drainage, water supply and cable conduit purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machin

Featured Products

PE HDPE Pipe Extrusion Machine Production Line

Application:

PE HDPE Pipe Extrusion Machine Production Line is mainly used in the production of agricultural  drainage, water supply and cable conduit purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.


PE HDPE Pipe Extrusion Machine Production Line

Great advantages:

1. High lineal extrusion speed, big capacity and low power consumption, and achieved multi-layers co-extrusion with 1-5 layers.
2. The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3. Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4. Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
5. High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
6. PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusion line, and improve quality of inner pipe surface;
7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
8. Chip-free cutter ensuing flat and smooth cutting surface of pipe.


Work flow and detailed information :
Feeder • To feed material into extruder;
Extruder• World famous brand electrical component such as Siemens,Schneider, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.
Die head  40Cr material
 Complete set include extrusion die head, Slotting & water ring type calibration sleeve
• Apply to PE/PP, co-extrusion, multi-layers co-extrusion etc
Vacuum calibration tank Include full set of vacuum and water pump
 length from 6m-9m

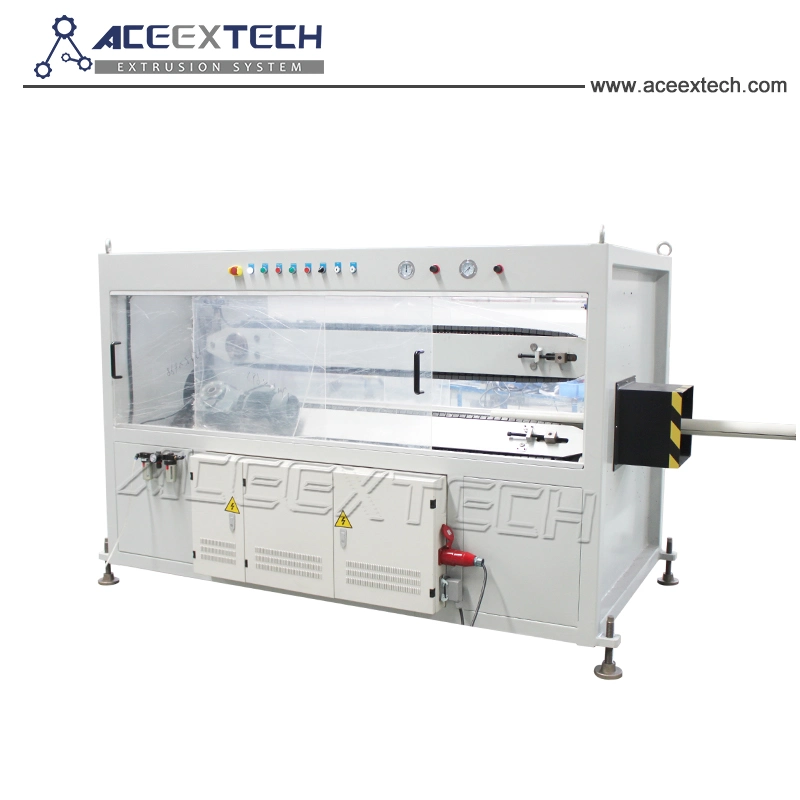

Haul off Upper and lower caterpillar is driven separately by the frequency inverter
 Fast change type pads
Cutter  Tracking cutter or Non-dust cutter, Blade rotates around pipe and cut off pipe with smooth surface.
• Synchronous control
Stacker Stainless steel 304 as touching material
 Discharge driving by air cylinder

PE HDPE Pipe Extrusion Machine Production Line



PE HDPE Pipe Extrusion Machine Production Line



PE HDPE Pipe Extrusion Machine Production Line


PE HDPE Pipe Extrusion Machine Production Line



PE HDPE Pipe Extrusion Machine Production Line


Technical Parameter:
Diameter range(mm)Extruder modelMax. Capacity(kg/h)Max. lineal speed(m/min)Extruder power(KW)
Ф20-63ASS65/332201255
Ф20-63ASE60/3846030110
Ф20-63 DualASE60/3846015×2110
Ф20-110ASS65/332201255
Ф20-110ASE60/3846030110
Ф20-160ASE60/3846015110
Ф50-250ASE75/3860012160
Ф110-450ASE90/388508250
Ф250-630ASE90/381,0504280
Ф500-800ASE 120/381,3002315
Ф710-1200ASE120/381,4501355
Ф1000-1600ASE90/38
ASE90/38
1,9000.6280
280

 Main components:
- Motor: Siemens, WEG, SEW
- Gear reducer: SEW, FALK
- Bearing: SKF, FAG, NSK
- Air cylinder: Festo, SMC, AirTac
- PLC interface and module: Siemens, Schneider, Beckhoff
- Frequency inverter: ABB, Schneider, Siemens
- Servo motor: Lenze, Delta
- Pressure sensor: Dynisco, Gefran
- Low voltage component: Siemens, Schneider, Omron, LS
- Temperature controller: Omron, RKC
- Solid state relay: Crydom, Celduc

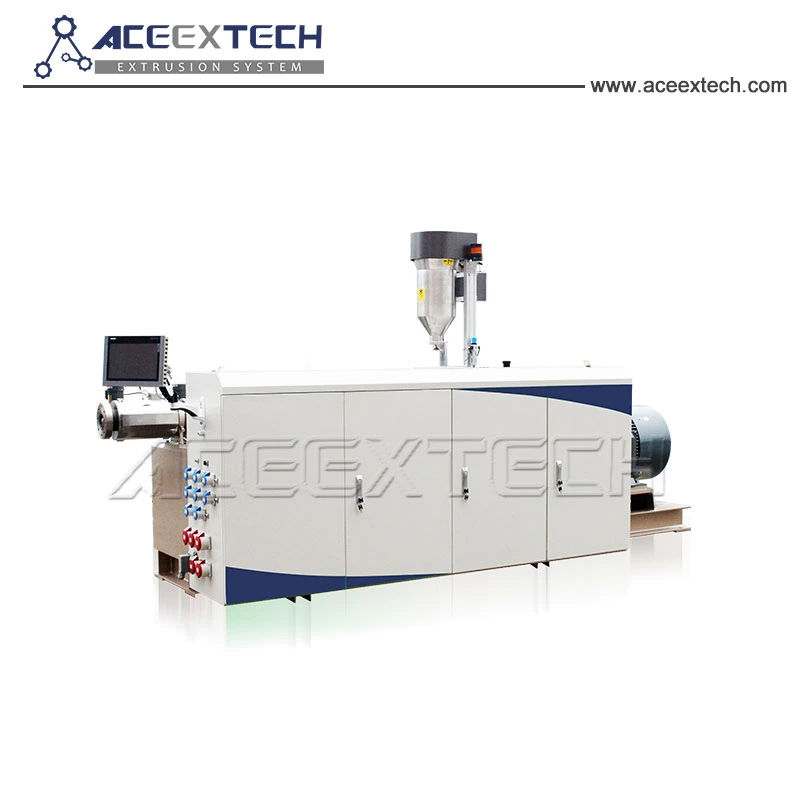

Main Extruder 3D details:

A, Long groove between feed throat and screw to improve output highly
B. Accurate temperature control system on feed section to match different plastics
C. Unique screw design to achieve higher plasticizing and products quality
D. Gearbox of high torsion balance to realize stable running
E. H shape frame to decrease vibrating
F. PLC (Simatic Multi Panel) operation panel to ensure synchronization
G. Energy conservation, easy to maintenance


About ACEEXTECH:
ACEEXTECH is a creative company, focusing on R & D of plastic extrusion system, and providing the equipments and solutions for plastic pipe, profile, tile, sheet and board.
ACEEXTECH products fulfill the needs of users in a very direct way due to over 25 years of knowledge and experience in plastic extrusion field, which also helps us to contribute actively to the success of customers by offering sustainable solutions that meet industry needs.
ACEEXTECH offers a complete portfolio of support and consulting services all the time, from project engineering to custom financing solutions, after sales service at its best, ongoing production optimization, training and advisory services, even end product development.

Why ACEEXTECH:
- Specialized R & D team involved in plastic extrusion industries over 25years.
- Ability to provide the customized plastic extrusion solutions.
- Complete sales system covering the pre-sales, sales and after-sales service jobs.
- Professional sales team with local language speaking ability for English, Portuguese, Spanish, Turkish and Russian markets.

ACEEXTECH'S service:
- Pre-sale: we give our client the detailed technician offer, Layout design, Water/electricity/gas arrangement. Product simple       marketing analyze, other necessary guidance
- In-sales: we supply the details layout, installation instruction, and technician support for the clients.
- After sales: we arrange engineer to install the machine and train the workers for our client.
- We have 24 hours service line to solve the after sales problem.
- We have free spare parts with the machine.
- We supply long term spare parts for every customer.
- We always update the new technology to every customer.

Inquiry to ACEEXTECH:
In order to match your requirement and provide you a proper quotation, please advise:

- How many layers?

- What is the layers ratio if mutil-layers design?
- Pipe diameter and thickness scarification;
- Application of final product;
- Capacity requirement in kg or meter.
