UPVC/CPVC/PVC water supply pipe production line, PVC pipe making machine, PVC pipe extruder

Application of Pipe: PVC Plastic Pipe Extrusion Extruder Machine is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.Charaacterizer of MT extruder: Capacity increased

Featured Products

Application of Pipe:

PVC Plastic Pipe Extrusion Extruder Machine is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.

Charaacterizer of MT extruder:


 Capacity increased (20% higher),
 High
standard (Bimetallic & PLC Intelligence),
 Reliable quality (vertical gearbox by SKF bearing)


UPVC/CPVC/PVC Water Supply Pipe Production Line PVC Pipe Making Machine PVC Pipe Extruding Machine




Equipmnet List :
PVC pipe extruder machine line : consists mainly of

Twin screw conical (parallel) extruder,


UPVC/CPVC/PVC Water Supply Pipe Production Line PVC Pipe Making Machine PVC Pipe Extruding Machine

Mould

UPVC/CPVC/PVC Water Supply Pipe Production Line PVC Pipe Making Machine PVC Pipe Extruding Machine

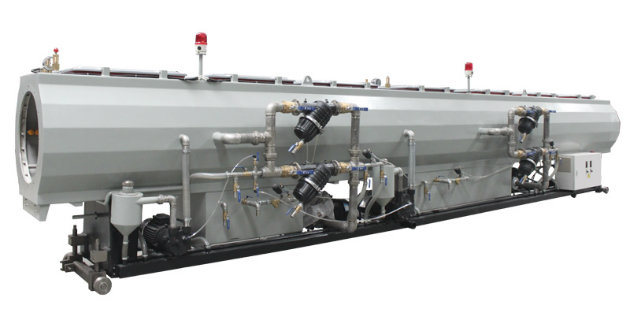

Vacuum calibrating tank,
UPVC/CPVC/PVC Water Supply Pipe Production Line PVC Pipe Making Machine PVC Pipe Extruding Machine

 Haul-off unit &Cutting unit,
UPVC/CPVC/PVC Water Supply Pipe Production Line PVC Pipe Making Machine PVC Pipe Extruding Machine


Feature of Machine:
1. Applied with imported A/C inverter.
2. Famous brand of vacuum pump and driving motor
3. Hal-off Machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.
4. Saw cutting or planet cutting can be applied
5. it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.

If you are interest in our machine, that would be our honor to provide information for you.
UPVC/CPVC/PVC Water Supply Pipe Production Line PVC Pipe Making Machine PVC Pipe Extruding Machine


Main parameter of PVC pipe production line extruder machine
Extruder modelSJSZ-50/105SJSZ-55/110SJSZ-65/132SJSZ-80/156SJSZ-92/188
Driving motor (kw)1537375590
Pipe diameter range(mm)16-4020-11050-200200-400400-630
Water pump3kw4kw5.5kw5.5kw X 2pcs7.5kw X 2pcs
Vacuum pump2.2kw X 2pcs4kw4kw4kw X 2pcs7.5kw 5.5kw X 2pcs
Caliber Length(mm)50006000600080006000, 3000
Water cooling tankNoNo50006000100000
Hauling motor0.75kw 4pcs2.2kw3.7kw7.5kw18.5kw
Hauling belt4pcs2pcs2pcs4pcs6pcs
Cutting motor1.1kw 2pcs2.2kw3.7kw3.7kw3.7kw
Inverter brandABBABBABBABBABB
Contactor brandSchneiderSchneiderSchneiderSchneiderSchneider
